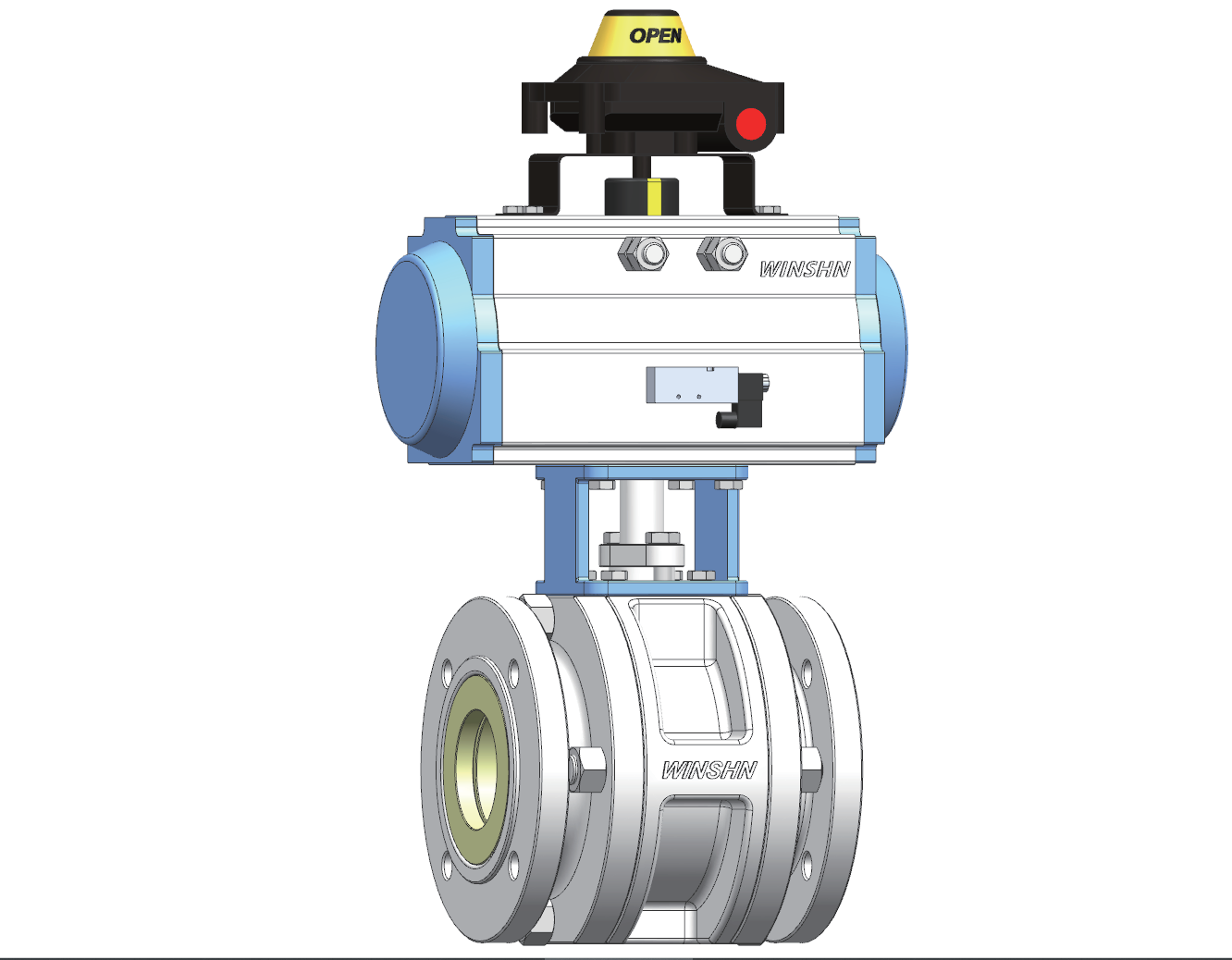

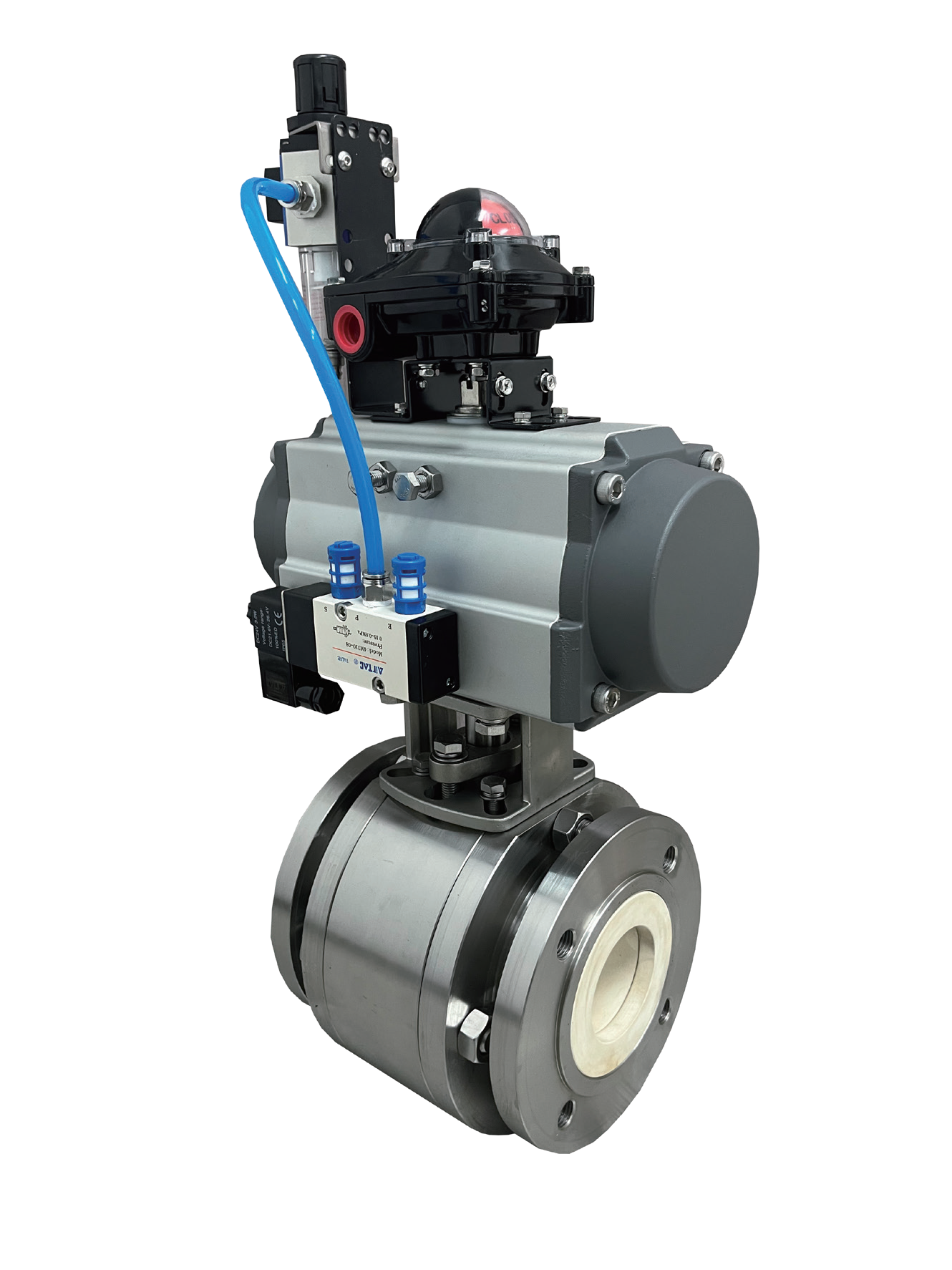

Pneumatic ceramic ball valves

Pneumatic ceramic ball valves are automated control valves designed for highly abrasive, strongly corrosive media, using a combination of “ceramic sealing technology + pneumatic drive”, to achieve high efficiency cut off and precise regulation of particles, slurries, acids and alkalis and other harsh media, widely used in electric power, mining, chemical industry, environmental protection, and other industrial fields, is the solution to the traditional metal valves with fast wear and tear, high leakage rate of the ideal program.





Category:

Description

Features:

1, all media contact parts are structural ceramic materials, its chemical stability and hardness (Rockwell hardness HRC90), second only to diamond, therefore, the valve has
extremely high wear resistance. Corrosion resistance. Resistant to erosion and erosion performance, and good insulation, thermal expansion.
2, the ball is manufactured using advanced grinding equipment and technology, high precision ball roundness, good surface quality, and the seat of the research, the use of AlO2 (Alumina Zro2 (oxidation
error) ceramics self-lubrication, can achieve good sealing performance.
3, completely changed the metal hard seal ball valve easy to leak. Torsion torque. Sealing surface is not corrosion-resistant shortcomings.
4, ceramic good wear resistance, so that the valve is durable, high reliability, long service life, is titanium alloy valve and Monel valve 2-4 times.
5、 Used in high hardness of the particle medium. Or soft particles but also corrosive media, the valve has an unparalleled absolute advantage, and is currently the only valve suitable for this
type of media.
6, win Xuan ceramic valve drive: manual, pneumatic, electric, hydraulic, electro-hydraulic and so on.

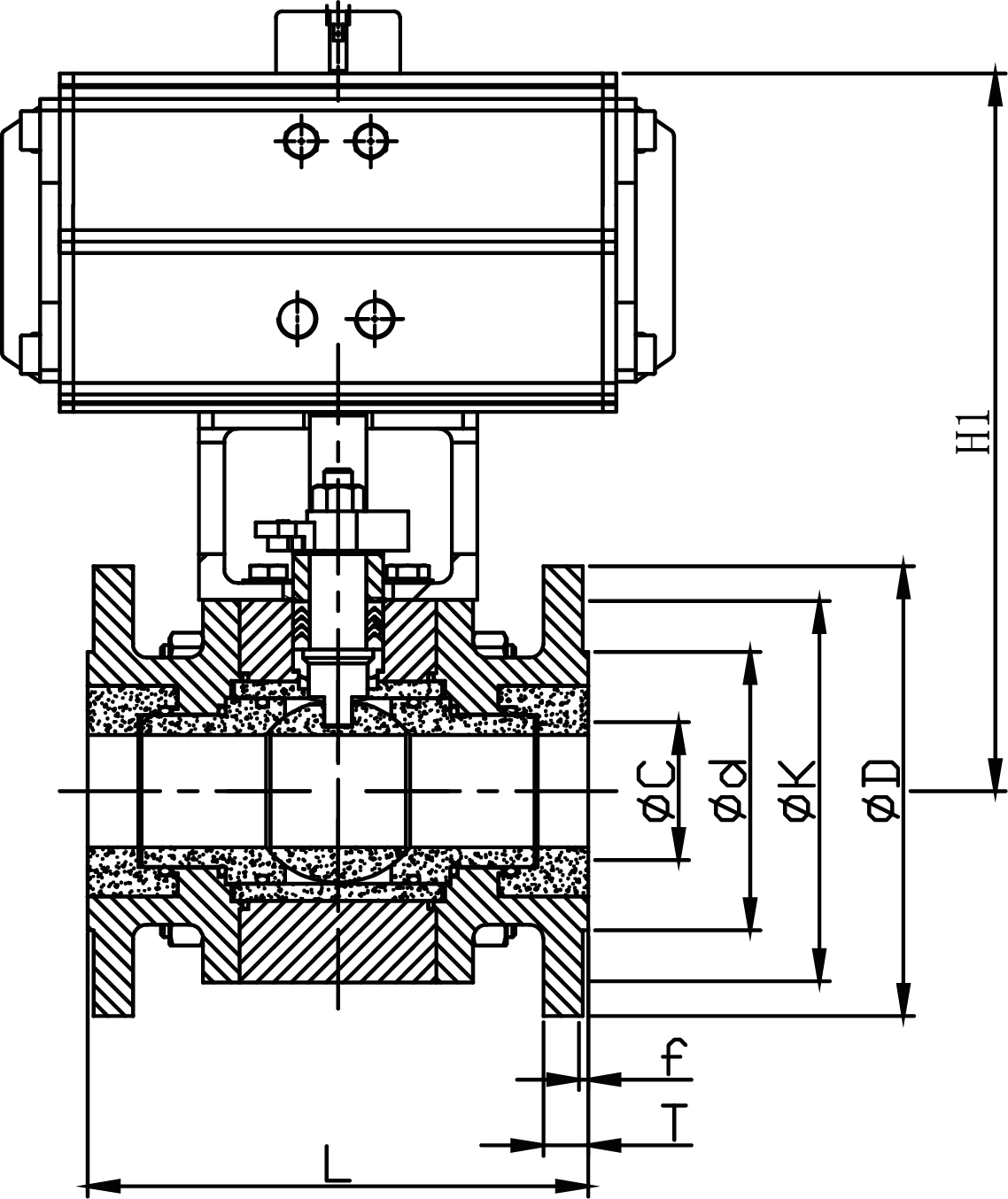

Main shape and connection size PN10:
DN C d K D L T f n-φm H H1 L1 H 2
DN50 50 102 125 165 178 18 3 4-M16 135 271 133 145
DN65 65 122 145 185 190 20 3 4-M16 146 299 146 156
DN80 80 138 160 200 203 22 3 8-M16 160 345 167 170
DN100 100 158 180 220 256 24 3 8-M16 196 381 167 206
DN125 125 188 210 250 356 24 3 8-M16 213 421 195 223
DN150 150 212 240 285 394 26 3 8-M 20 235 450 195 245

Application

Pneumatic ceramic ball valve is an automatic control valve designed for high abrasion, strong corrosive media, the use of “ceramic sealing technology + pneumatic drive” combination, to achieve the particles, slurry, acid and alkali and other harsh media such as high-efficiency cut off and precise regulation, widely used in electric power, mining, chemical industry, environmental protection and other industrial fields, is the solution to the traditional metal valves with fast wear and tear, the leakage rate is high ideal solution.

Additional information

DN

50 丨 80
